Thermospheric General Circulation Models (TGCM)

TGCMPROC-like master scripts

Polar Stereographic Plots



master script: polar_master.ncl

This script contours selected fields over a polar stereographic map projection at selected Zp pressure levels. User settable options include color, curly-vector overlay, and postscript file output.

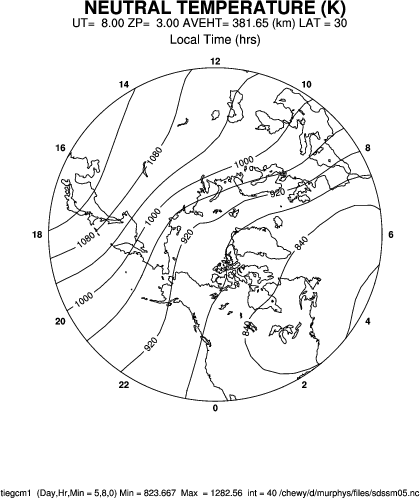

1) user choice: black and white


     comment out colormap
     ; colormap = "BlWhRe"

(geographic coordinates)

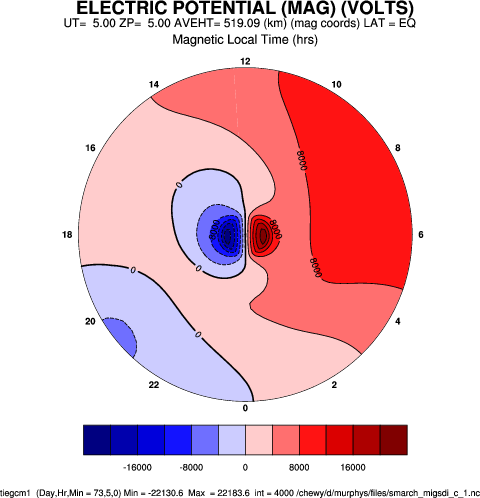

2) user choice: color


     colormap = "BlAqGrYeOrRevi200"

(magnetic coordinates)

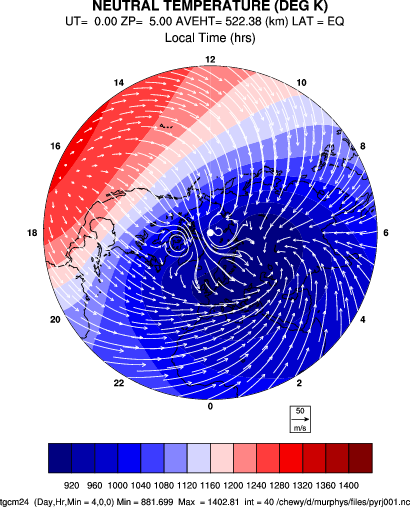

3) user choice: color + vectors


     addvec   = True
     colormap = "BlAqGrYeOrRevi200"

(geographic coordinates)

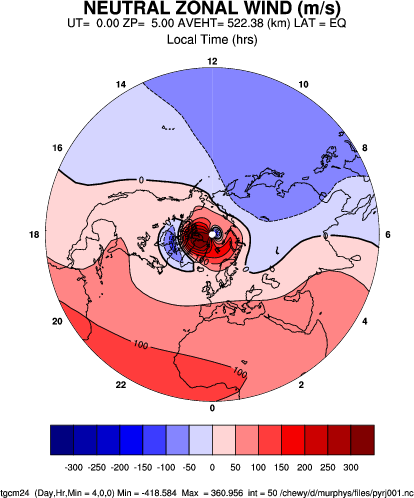

4) user choice: color + manually select contour intervals


     colormap = "BlWhRe"
     manlev   =  True
     minlev   = -300
     maxlev   =  300
     int      =  40

(geographic coordinates)

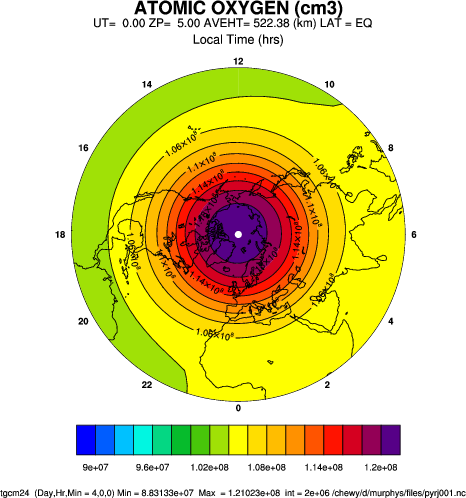

5) user choice: density unit conversion


     density_units = "CM3"

(geographic coordinates)
6) user choice: interpolate to height


     height = "150"

(geographic coordinates)
Other projections: Cylindrical Equidistant
