Thermospheric General Circulation Models (TGCM)

TGCMPROC-like master scripts

Cylindrical Equidistant Plots



master script: ce_master.ncl

This script contours selected fields over a cylindrical equidistant map projection at selected Zp pressure levels. User settable options include color, curly-vector overlay, and postscript file output.

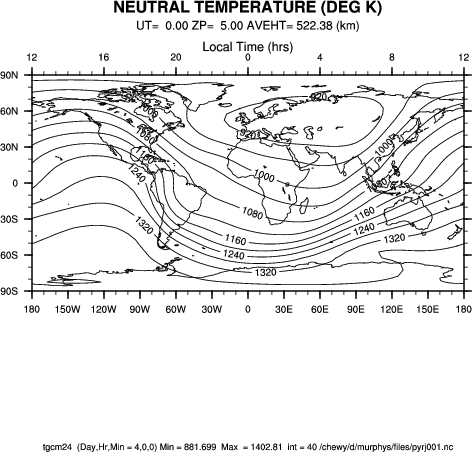

1) user choice: black and white



     comment out colormap
     ; colormap = "BlWhRe"

(geographic coordinates)

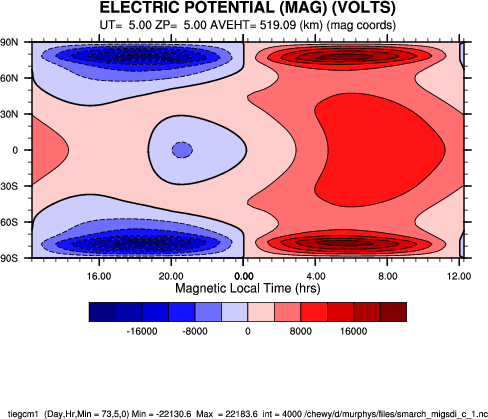

2) user choice: color



     colormap = "BlWhRe"

(magnetic coordinates)

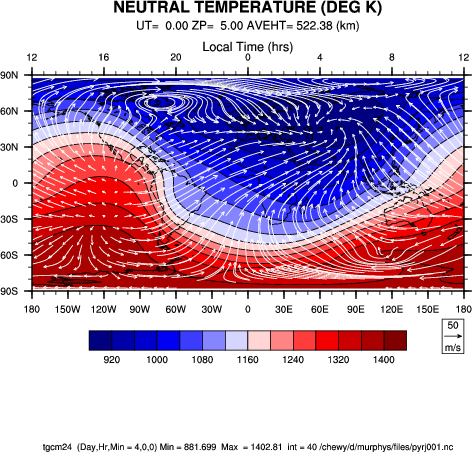

3) user choice: color + vectors


     addvec   = True
     refmag = 50.
     reflen = 0.03
     colormap = "BlWhRe"

(geographic coordinates)

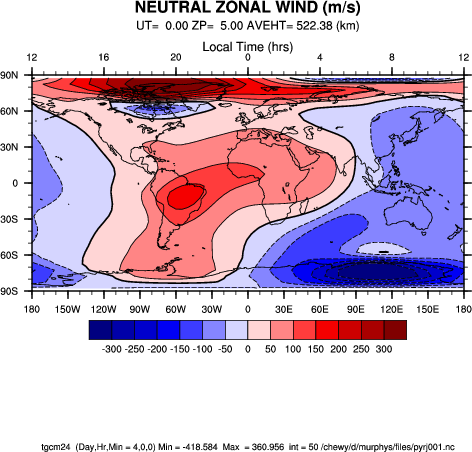

4) user choice: color + manually select contour levels


     colormap = "BlWhRe"
     manlev   =  True
     minlev   = -300
     maxlev   =  300
     int      =   50

(geographic coordinates)

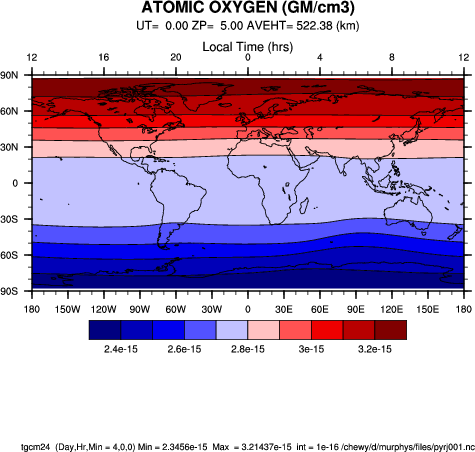

5) user choice: color + density unit conversion


     colormap      = "BlWhRe"
     density_units = "GM/CM3"

(geographic coordinates)

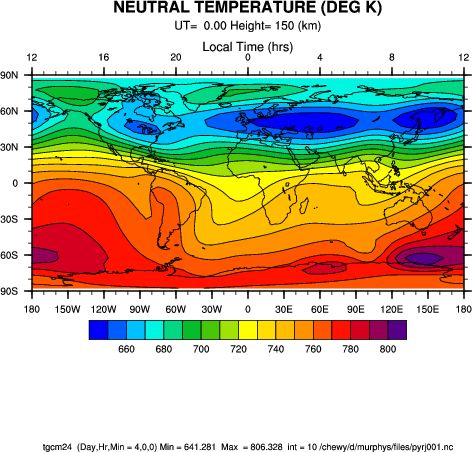

6) user choice: color + height interpolation


     colormap = "BlWhRe"
     height   = 150

(geographic coordinates)
Other projections: Polar Stereographic
