February 6, 2003

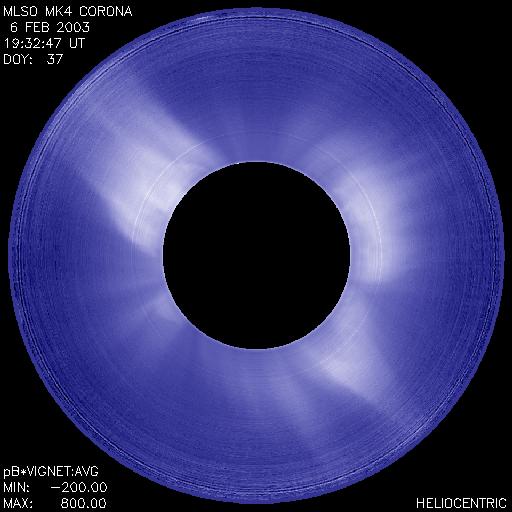

20030206.193247_mk4

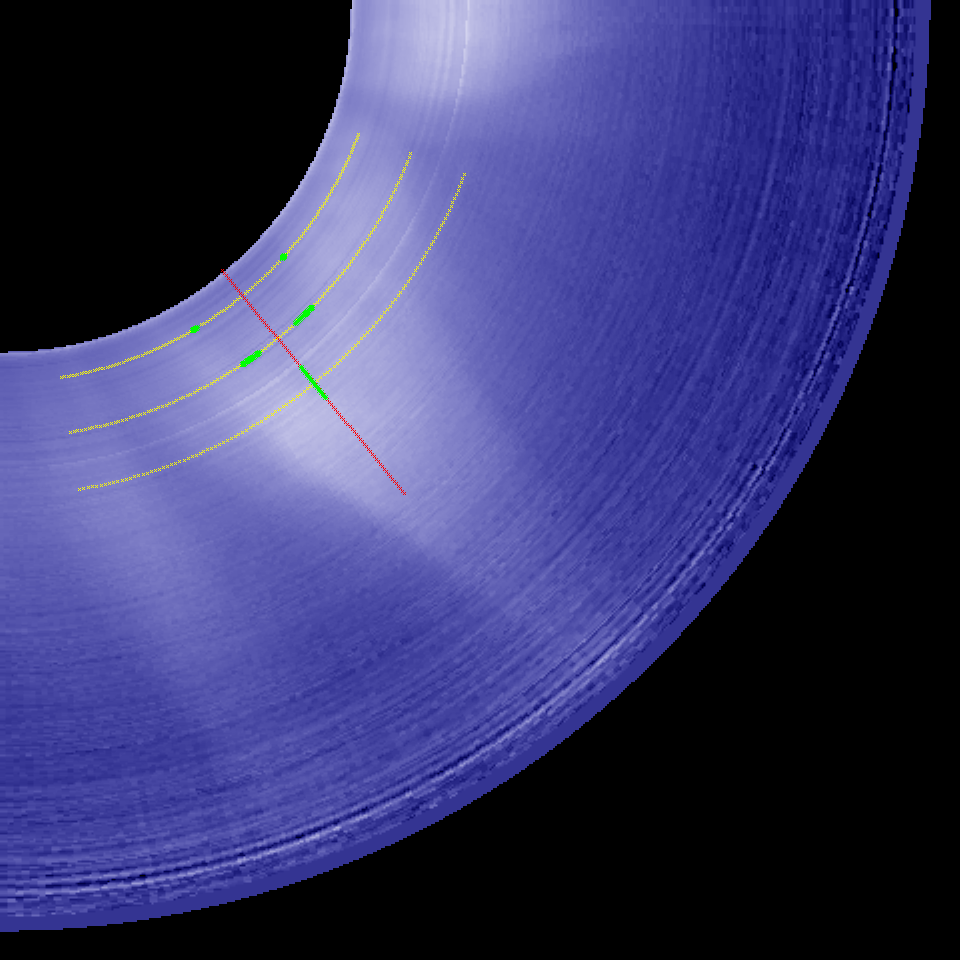

Center =219.28+/-0.91 degrees PA (SW quadrant) (red radial line)

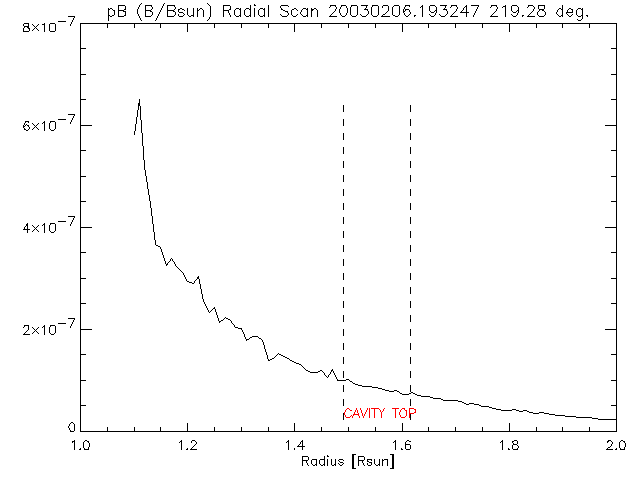

Maximum height = 1.55+/-0.06 Rsun

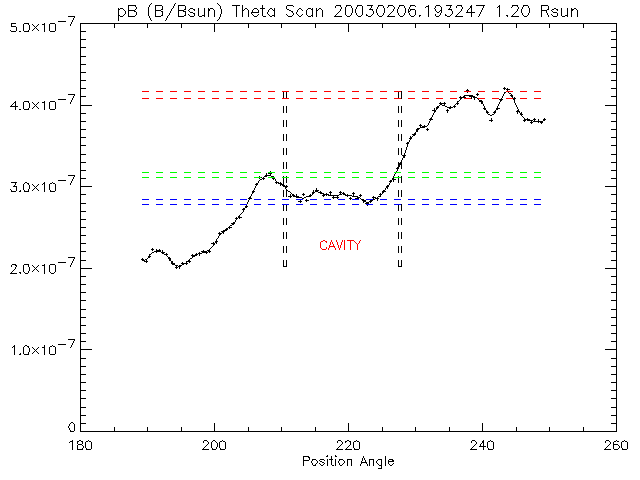

Width (at 1.20 Rsun) = 17.11+/-0.36 degrees latitude (measured between edges -- vertical dashed lines at inflection points)

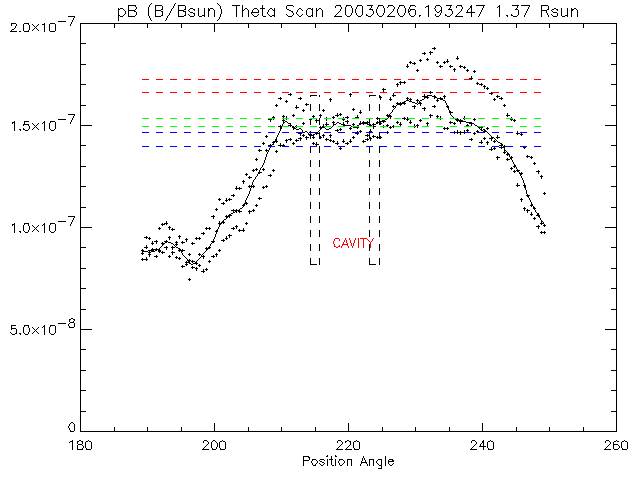

Width (at 1.37 Rsun) = 8.92+/-1.46 degrees latitude
Cavity depletion, equatorward (1.20 Rsun) = 0.32+/-0.014 (ratio of red to blue dashed line)
Cavity depletion, equatorward (at 1.37 Rsun) = 0.15+/-0.036 (ratio of red to blue dashed line)
Cavity depletion, poleward (1.20 Rsun) = 0.10+/-0.018 (ratio of green to blue dashed line) Minimum intensity in cavity (1.20 Rsun) = 2.8e-07+/-2.8e-09 (Bsun) (blue dashed lines);
Cavity depletion, poleward (1.37 Rsun) = 0.06+/-0.034 (ratio of green to blue dashed line) Minimum intensity in cavity (1.37 Rsun) = 1.4e-07+/-3.4e-09 (Bsun) (blue dashed lines);
Slope at equatorward cavity edge (1.20 Rsun) = 1.9e-08+/-5.6e-09 (Bsun/degree)
Slope at equatorward cavity edge (1.37 Rsun) = 4.9e-09+/-2.9e-09 (Bsun/degree)
Slope at poleward cavity edge (1.20 Rsun) = -9.8e-09+/-5.6e-09 (Bsun/degree)
Slope at poleward cavity edge (1.37 Rsun) = -5.4e-09+/-2.9e-09 (Bsun/degree)

length lower limit = 6 days visible in white light at limb February 6**; -7; -8; -9; -10; -11;

Recurrence =West limb January 6**; -9; West limb February 6**; -7; -8; -9; -10; -11; East limb February 23; -24**; Visible Dec 2002. Also not shown: ~Jan 23 East limb, March 4-5-6-7-8... West limb
Evolution comments = Again only a small piece of filament visible in H-alpha, but quite high polar cavity visible recurrently for 2-3 months at least. Originally visible Dec 31, then Jan 6-9 West limb, then around Jan 23 East limb (not shown), then West limb Feb 23-24, poss 25, poss a little 26, although obscured. LASCO EIT out Feb 25-26. Possibly affected by filament erupt/CME Feb 28, although this mainly affects long, kinked CF closer to equator. Cavity shows up again nicely at West limb on March 4-5-6-7-8...

Neutral line orientation at the limb =
CME/dimmings association = CME poss. affected by CF (closer to equator) eruption Feb 28 2003; prominence eruption on February 28;

Active region association = N/A

Filament/FC association = small prom at limb -- piece of PCF; N/A

Other comments: N/A

Filament - only visible in H-alpha or EUV

Necking - no neck
