July 8, 2002 (West limb)
|
Center

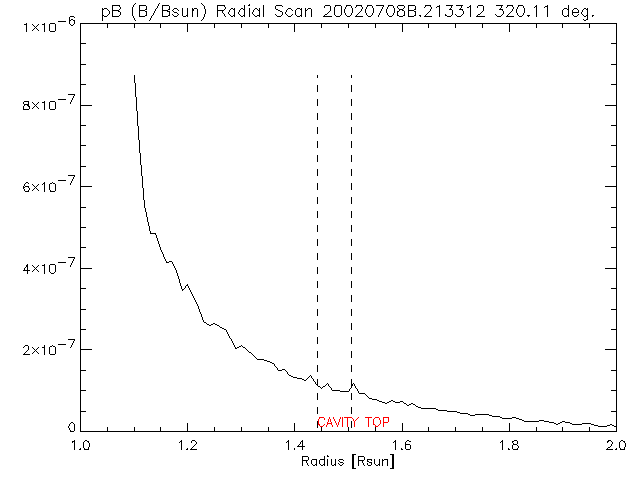

=320.11+/-1.00 degrees PA (NW quadrant) (red radial line) | Maximum height = 1.47+/-0.03 Rsun | |
|

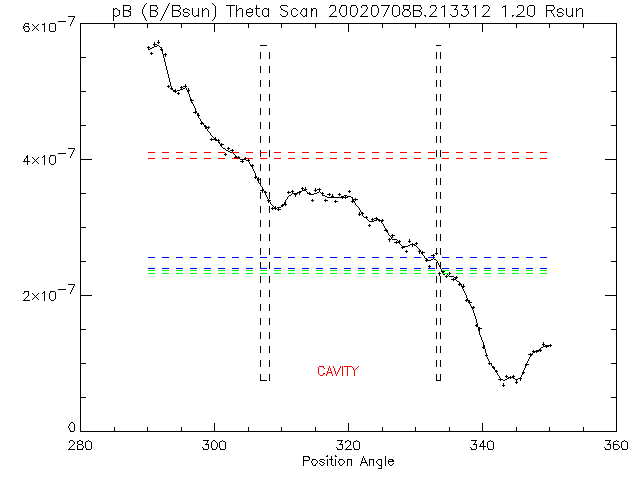

Width (at 1.20 Rsun) =
25.95+/-0.97 degrees latitude (measured between edges -- vertical dashed lines at inflection points)
|

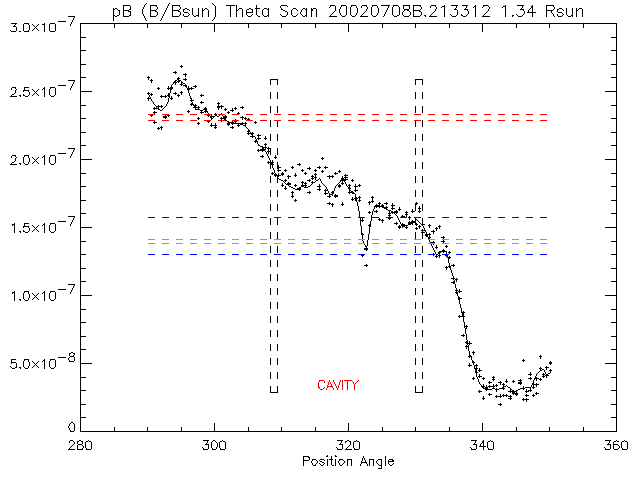

Width (at 1.34 Rsun) =
21.72+/-1.03 degrees latitude
| |
|
| ||
|
| ||
|
| ||
|
|
| length lower limit = 3 days
visible in white light at limb July 8; -9; -10;
| |
| Visible on both limbs July 8-10, possibly also July 21-22 | |
| Evolution comments = BIG PCF system. Kinked NL straightens over a two and a half months. At least one eruption, June 6, when it is mostly still behind the limb. Appears larger (wider, higher) and darker at the limb before erupting in CME on July 23. Unfortunately, MLSO stops observing before this CME. |
| Neutral line orientation at the limb = | |
| CME/dimmings association =
CME July 23; prominence eruption on July 23; | |
| Active region association =
N/A | |
| Filament/FC association = PCF-N; channel extending across disk, nearly parallel the whole way | |
| Other comments:
cavity visible in EUV | |
| Filament -
only visible in H-alpha or EUV
| |
| Necking -
no neck
|
