20020103.175312

January 3, 2002

20020103.175312_mk4

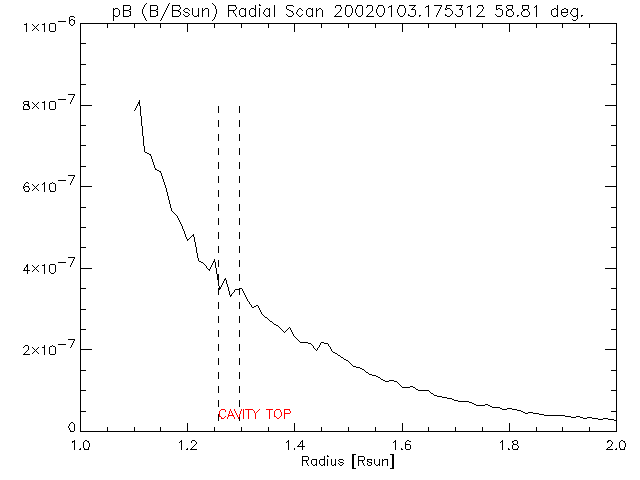

Center =58.81+/-0.53 degrees PA (NE quadrant) (red radial line)	Maximum height = 1.28+/-0.02 Rsun

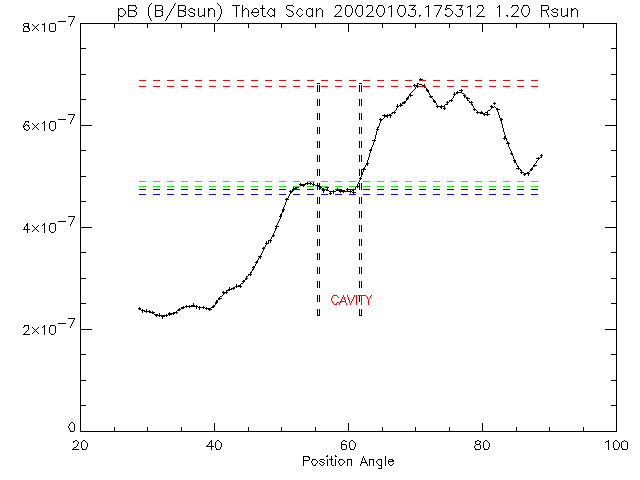

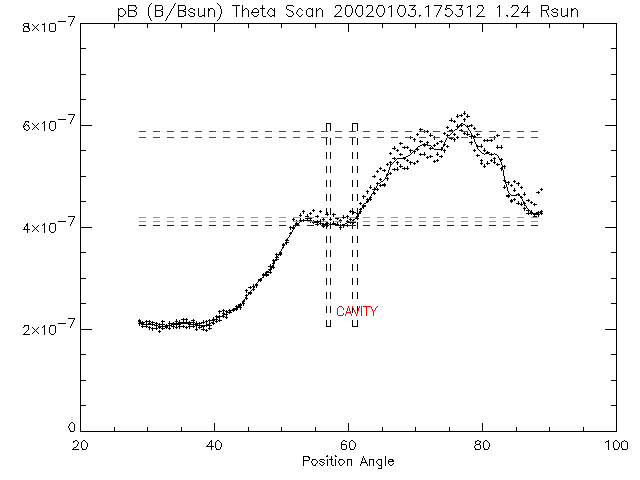

Width (at 1.20 Rsun) = 6.24+/-0.38 degrees latitude (measured between edges -- vertical dashed lines at inflection points)	Width (at 1.24 Rsun) = 3.98+/-0.69 degrees latitude
Cavity depletion, equatorward (1.20 Rsun) = 0.31+/-0.014 (ratio of red to blue dashed line)	Cavity depletion, equatorward (at 1.24 Rsun) = 0.30+/-0.014 (ratio of red to blue dashed line)
Cavity depletion, poleward (1.20 Rsun) = 0.03+/-0.019 (ratio of green to blue dashed line) Minimum intensity in cavity (1.20 Rsun) = 4.7e-07+/-4.7e-09 (Bsun) (blue dashed lines);	Cavity depletion, poleward (1.24 Rsun) = 0.02+/-0.020 (ratio of green to blue dashed line) Minimum intensity in cavity (1.24 Rsun) = 4.1e-07+/-4.1e-09 (Bsun) (blue dashed lines);
Slope at equatorward cavity edge (1.20 Rsun) = 3.1e-08+/-9.4e-09 (Bsun/degree)	Slope at equatorward cavity edge (1.24 Rsun) = 1.5e-08+/-8.2e-09 (Bsun/degree)
Slope at poleward cavity edge (1.20 Rsun) = -8.1e-09+/-9.4e-09 (Bsun/degree)	Slope at poleward cavity edge (1.24 Rsun) = 1.1e-10+/-8.2e-09 (Bsun/degree)

length lower limit = 1 days visible in white light at limb January 3**** (LASCO/EIT CME (4)!);
No Recurrence analyzed
Evolution comments = EIT CME case (from Sterling and Moore, 2004)

Neutral line orientation at the limb =
CME/dimmings association = CME January 4; prominence eruption on January 4;
Active region association = AR9773 near
Filament/FC association =
Other comments: Cavity bulges and edge becomes sharper day before CME
Filament - visible in white light
Necking - bulging neck
