November 2, 1999



19991102.171753_mk4

Center =146.31+/-0.64 degrees PA (SE quadrant) (red radial line)

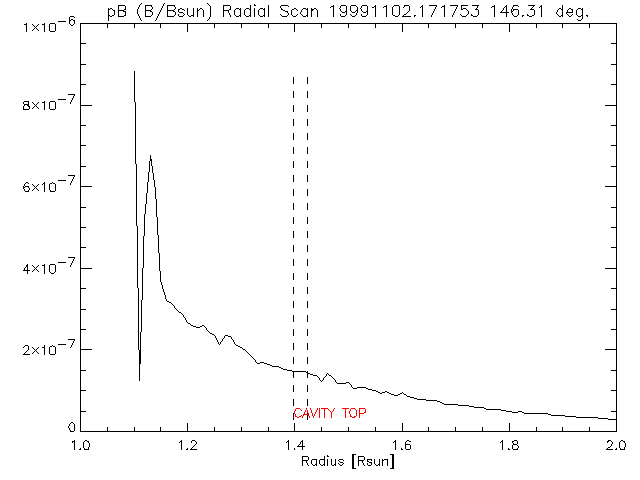

Maximum height = 1.41+/-0.01 Rsun

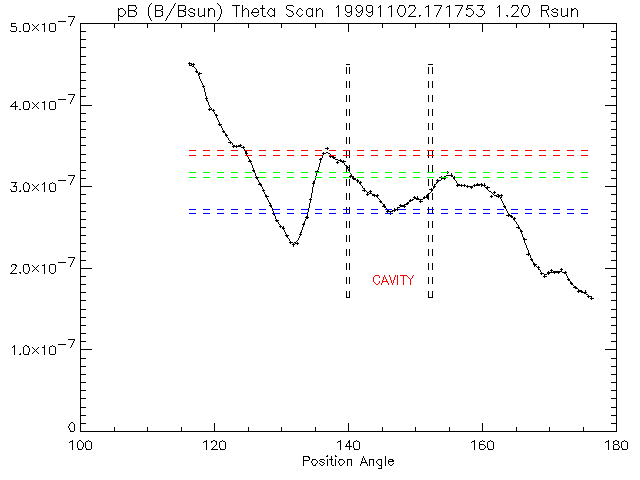

Width (at 1.20 Rsun) = 12.30+/-0.46 degrees latitude (measured between edges -- vertical dashed lines at inflection points)

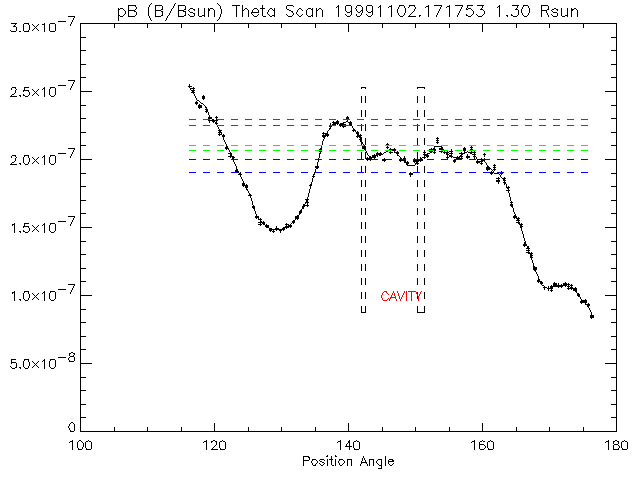

Width (at 1.30 Rsun) = 8.54+/-0.82 degrees latitude
Cavity depletion, equatorward (1.20 Rsun) = 0.21+/-0.016 (ratio of red to blue dashed line)
Cavity depletion, equatorward (at 1.30 Rsun) = 0.14+/-0.030 (ratio of red to blue dashed line)
Cavity depletion, poleward (1.20 Rsun) = 0.14+/-0.017 (ratio of green to blue dashed line) Minimum intensity in cavity (1.20 Rsun) = 2.7e-07+/-2.7e-09 (Bsun) (blue dashed lines);
Cavity depletion, poleward (1.30 Rsun) = 0.06+/-0.032 (ratio of green to blue dashed line) Minimum intensity in cavity (1.30 Rsun) = 2.0e-07+/-4.8e-09 (Bsun) (blue dashed lines);
Slope at equatorward cavity edge (1.20 Rsun) = -1.4e-08+/-5.4e-09 (Bsun/degree)
Slope at equatorward cavity edge (1.30 Rsun) = -1.2e-08+/-3.9e-09 (Bsun/degree)
Slope at poleward cavity edge (1.20 Rsun) = 1.2e-08+/-5.4e-09 (Bsun/degree)
Slope at poleward cavity edge (1.30 Rsun) = 6.3e-09+/-3.9e-09 (Bsun/degree)

length lower limit = 1 days visible in white light at limb November 2**;

Recurrence =West limb September 18; -19; East limb October 1**; West limb October 19**; East limb November 2**; West limb November 18; -19 (CME!); West limb December 13; Also visible Feb-Apr 2000
Evolution comments = PCF-S -- 8 month supersystem. No LASCO CME movies Oct 1-5 -- but fil visible in 304 for several days so probably doesnt erupt then. No Mk4 data Oct 20-23, but no LASCO CME in the right place then. Likewise, no Mk4 dat Nov 3-7, but no LASCO CME. Cavity visible Nov 18 (no data Nov 17) and blows in a ***MK4 CME*** on Nov 19! No Mk4 Dec 1-6... Cavity visible Dec 13, then not clear soon thereafter -- no CME in LASCO, no EIT images to compare to. Dec 27 the PCF-S is not visible, but a higher, angled CF with nice bulbous cavity is that erupts (see next system). PCF-S becomes clear again in H-alpha, and eventually part of this PCF-S shows cavity Feb - Apr 2000.

Neutral line orientation at the limb =
CME/dimmings association = CME Nov 19;

Active region association = N/A

Filament/FC association = PCF-S -- note lower of two CF; PCF-S - note lower of 2 CF

Other comments: N/A

Filament - only visible in H-alpha or EUV

Necking - no neck
