19990219.174300

February 19, 1999

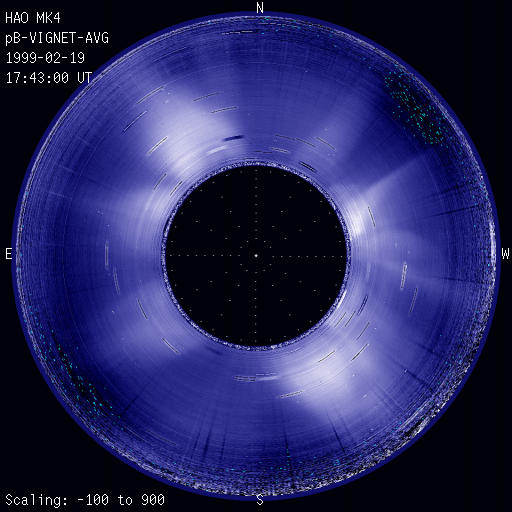

19990219.174300_mk4

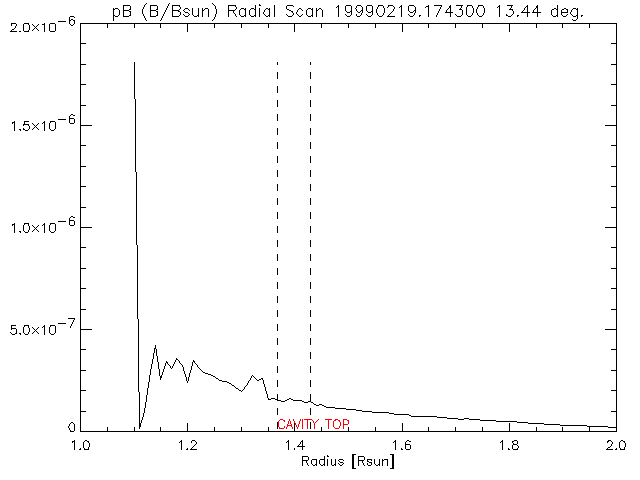

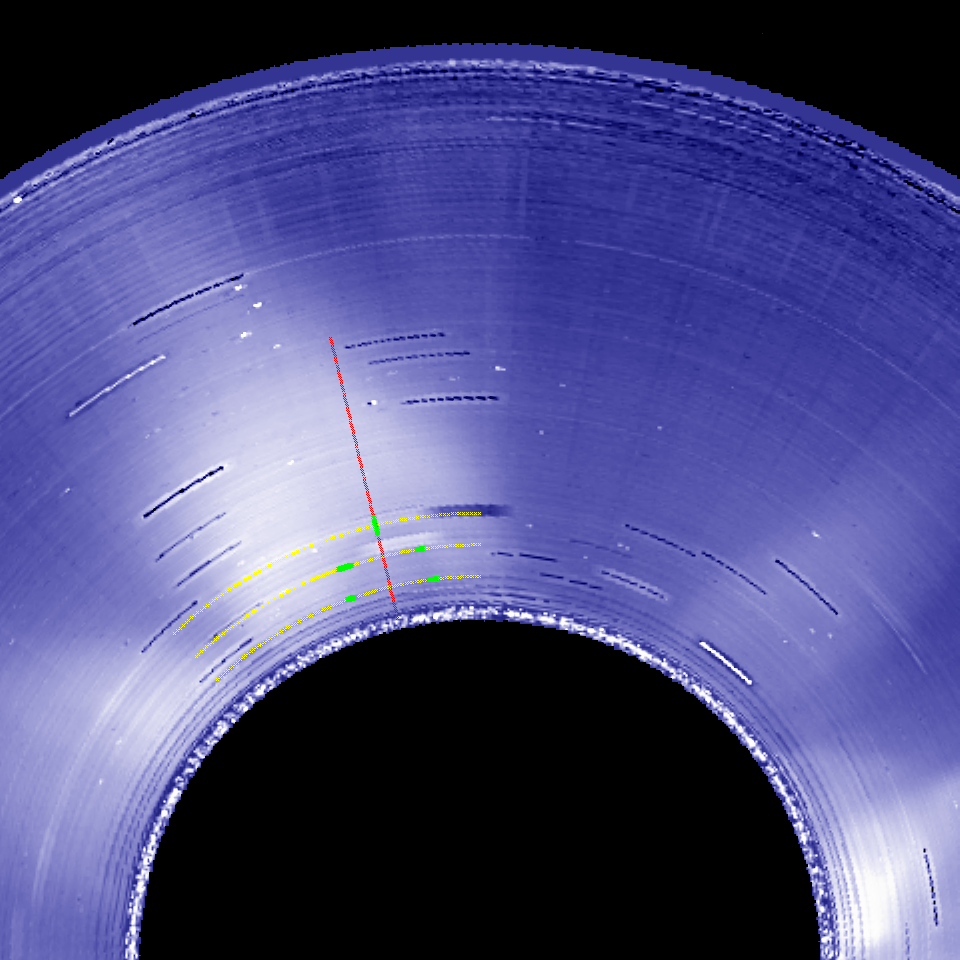

Center =13.44+/-0.63 degrees PA (NE quadrant) (red radial line)	Maximum height = 1.40+/-0.03 Rsun

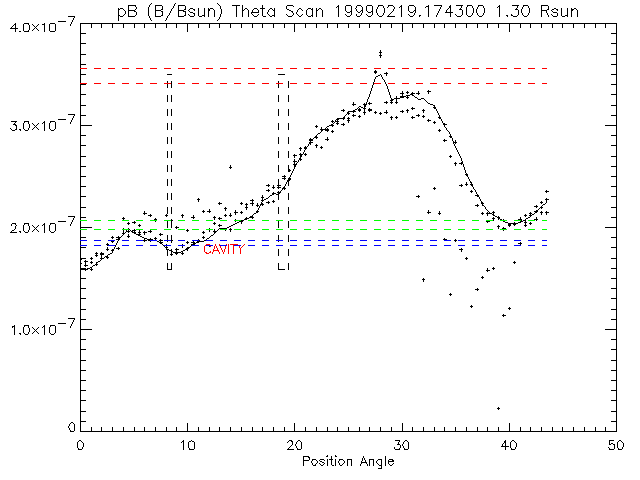

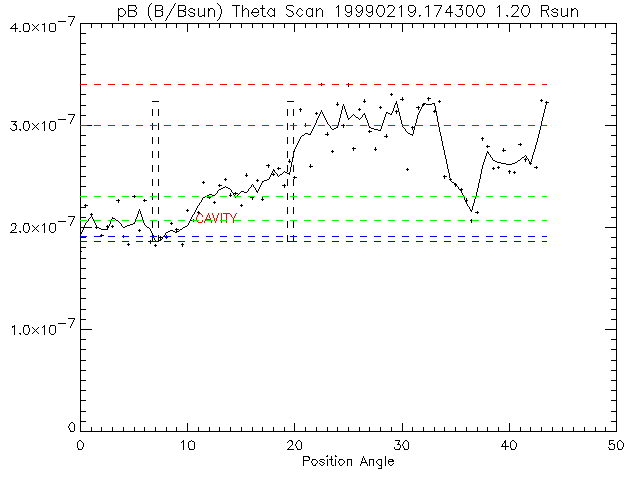

Width (at 1.20 Rsun) = 12.62+/-0.57 degrees latitude (measured between edges -- vertical dashed lines at inflection points)	Width (at 1.30 Rsun) = 10.66+/-0.68 degrees latitude
Cavity depletion, equatorward (1.20 Rsun) = 0.41+/-0.045 (ratio of red to blue dashed line)	Cavity depletion, equatorward (at 1.30 Rsun) = 0.47+/-0.018 (ratio of red to blue dashed line)
Cavity depletion, poleward (1.20 Rsun) = 0.13+/-0.058 (ratio of green to blue dashed line) Minimum intensity in cavity (1.20 Rsun) = 1.9e-07+/-2.5e-09 (Bsun) (blue dashed lines);	Cavity depletion, poleward (1.30 Rsun) = 0.09+/-0.031 (ratio of green to blue dashed line) Minimum intensity in cavity (1.30 Rsun) = 1.8e-07+/-2.6e-09 (Bsun) (blue dashed lines);
Slope at equatorward cavity edge (1.20 Rsun) = 2.4e-08+/-4.1e-09 (Bsun/degree)	Slope at equatorward cavity edge (1.30 Rsun) = 2.0e-08+/-3.7e-09 (Bsun/degree)
Slope at poleward cavity edge (1.20 Rsun) = -1.5e-08+/-4.7e-09 (Bsun/degree)	Slope at poleward cavity edge (1.30 Rsun) = -9.1e-09+/-3.7e-09 (Bsun/degree)

length lower limit = 2 days visible in white light at limb February 18; -19***;
No Recurrence analyzed
Evolution comments = PCF-N. Feb 18 19 visible -- no Mk4 Feb 20-21-22. No SOHO CME movies Feb 15-19. No EIT for several days after that. No Mk4 data March 2-7 so do not know if recurs.

Neutral line orientation at the limb =
CME/dimmings association = N/A
Active region association = N/A
Filament/FC association = PCF-N; N/A
Other comments: N/A

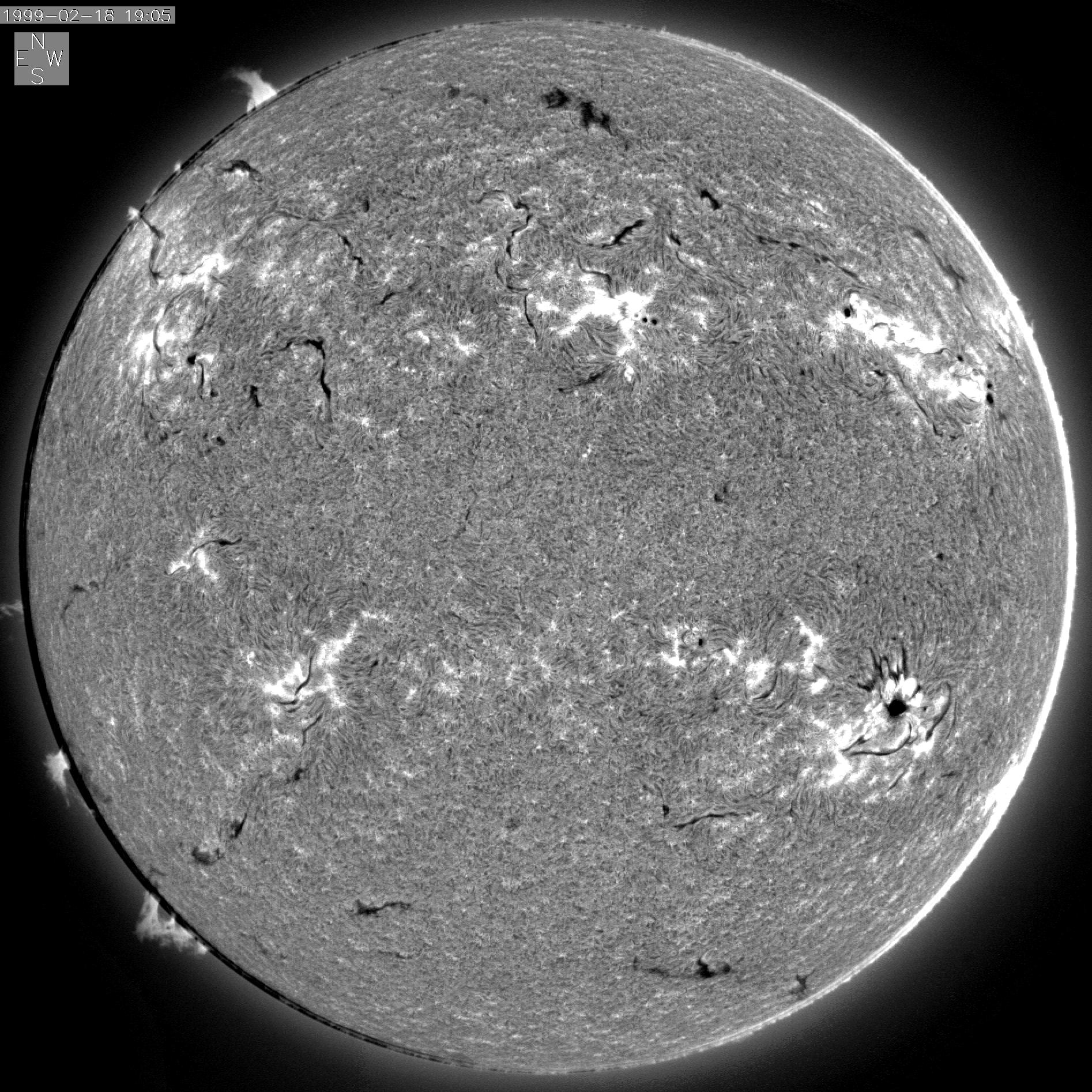

Filament - only visible in H-alpha or EUV
Necking - straight up and down neck

Cavity list (e.g. Tables 2 + 3)
Full list of cavity days observed
List of best cavity days (SET 1) observed (e.g. Table 1)
CMEs associated with cavities (e.g. Tables 7 + 8)
