February 4, 1999
|
Center

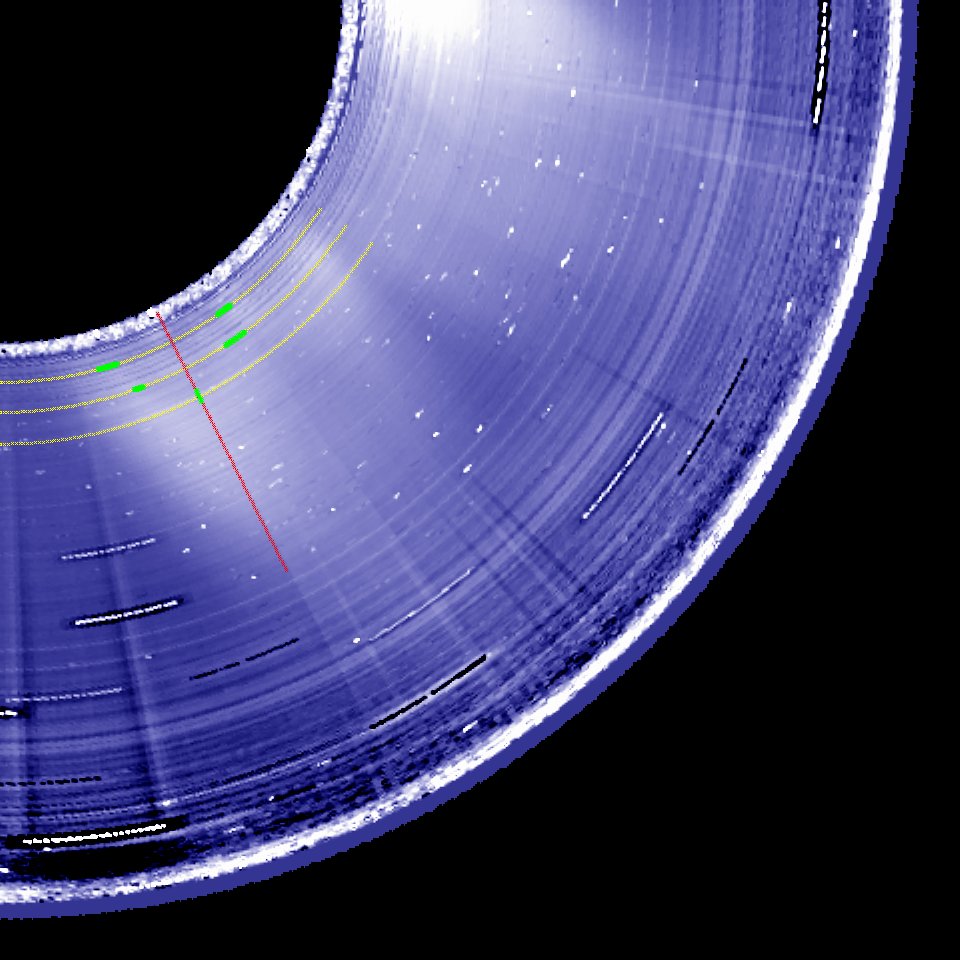

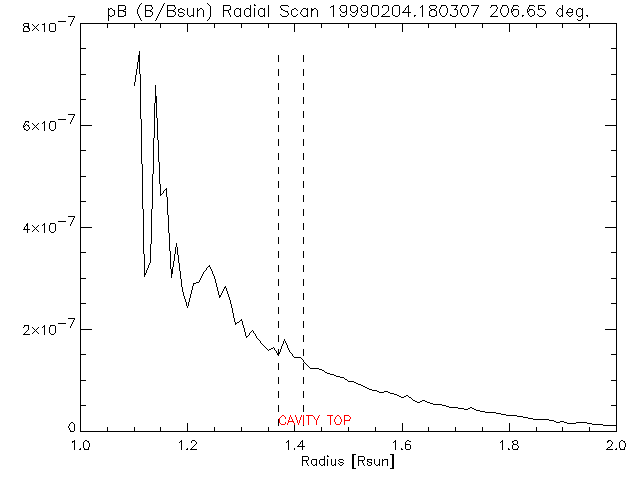

=206.65+/-1.26 degrees PA (SW quadrant) (red radial line) | Maximum height = 1.39+/-0.02 Rsun | |
|

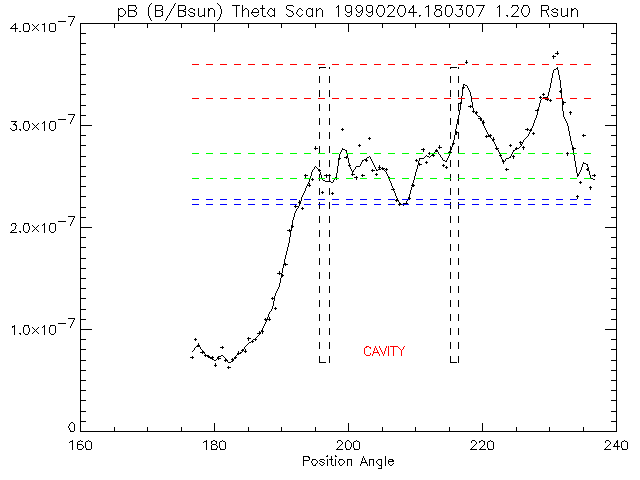

Width (at 1.20 Rsun) =
19.36+/-1.38 degrees latitude (measured between edges -- vertical dashed lines at inflection points)
|

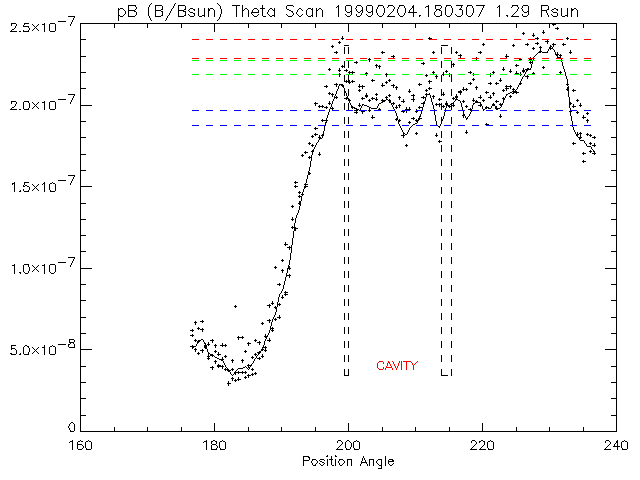

Width (at 1.29 Rsun) =
14.98+/-1.13 degrees latitude
| |
|
Cavity depletion, equatorward (1.20 Rsun) =
0.34+/-0.039 (ratio of red to blue dashed line)
| ||
|
Cavity depletion, poleward (1.20 Rsun) =
0.13+/-0.050 (ratio of green to blue dashed line)
Minimum intensity in cavity (1.20 Rsun) =
2.3e-07+/-2.3e-09 (Bsun) (blue dashed lines);
| ||
|
Slope at equatorward cavity edge (1.20 Rsun) =
3.4e-08+/-4.5e-09 (Bsun/degree)
| ||
|
Slope at poleward cavity edge (1.20 Rsun) =
1.3e-08+/-7.8e-09 (Bsun/degree)
|
| length lower limit = 2 days
visible in white light at limb February 4; -5 (CME!);
| |
| Also visible Dec 12-19 1998 | |
| Evolution comments = orig. CME case -- but turns out same PCF-S as Dec 1998 system, but different piece of PCF linked to cavity, and PCF evolved to connect S PCF with higher, angled CF resulting in a kinked PCF (with kink near Feb 4/5 cavity/CME) |
| Neutral line orientation at the limb = | |
| CME/dimmings association =
CME February 5; | |
| Active region association =
N/A | |
| Filament/FC association = PCF-S; N/A | |
| Other comments:
N/A | |
| Filament -
visible in white light
| |
| Necking -
straight up and down neck
|
