December 17,1998
|
Center

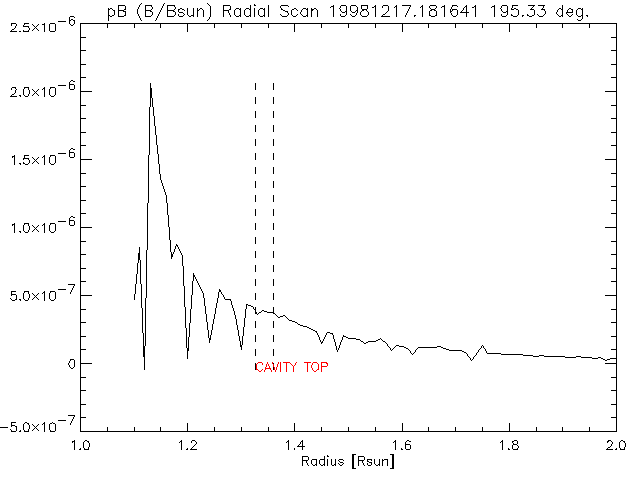

=195.33+/-0.99 degrees PA (SW quadrant) (red radial line) | Maximum height = 1.34+/-0.02 Rsun | |
|

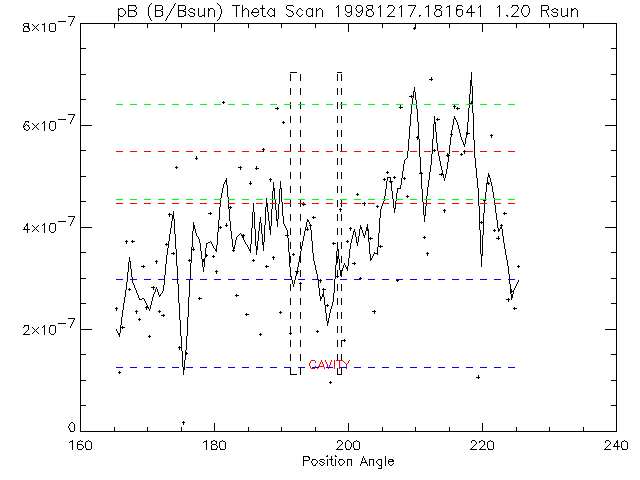

Width (at 1.20 Rsun) =
6.57+/-1.02 degrees latitude (measured between edges -- vertical dashed lines at inflection points)
|

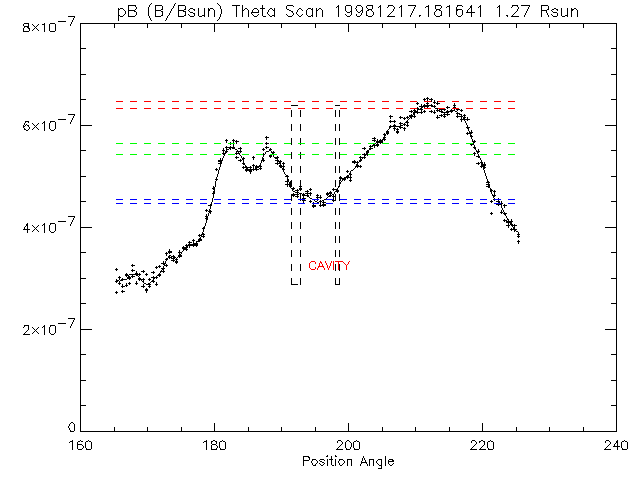

Width (at 1.27 Rsun) =
6.14+/-0.97 degrees latitude
| |
|
| Cavity depletion, equatorward (at 1.27 Rsun) = 0.30+/-0.014 (ratio of red to blue dashed line) | |
|
| Cavity depletion, poleward (1.27 Rsun) = 0.19+/-0.023 (ratio of green to blue dashed line) Minimum intensity in cavity (1.27 Rsun) = 4.5e-07+/-4.5e-09 (Bsun) (blue dashed lines); | |
|
| Slope at equatorward cavity edge (1.27 Rsun) = 2.3e-08+/-9.0e-09 (Bsun/degree) | |
|
| Slope at poleward cavity edge (1.27 Rsun) = -2.3e-08+/-9.0e-09 (Bsun/degree) |
| length lower limit = 8 days
visible in white light at limb December 12; -13; -14; -15***; -16**; -17; -18; -19 (CME!);
| |
| Also visibile Feb 4-5 1999 | |
| Evolution comments = PCF-S which erupts Dec 19 -- visible in Mk4, but not great quality. Also visible Feb 4-5 1999. |
| Neutral line orientation at the limb = | |
| CME/dimmings association =
CME December 19; prominence eruption on December 19; | |
| Active region association =
N/A | |
| Filament/FC association = PCF-S; PCF | |
| Other comments:
N/A | |
| Filament -
visible in white light
| |
| Necking -
straight up and down neck
|
Cavity list (e.g. Tables 2 + 3)
Full list of cavity days observed
List of best cavity days (SET 1) observed (e.g. Table 1)
CMEs associated with cavities (e.g. Tables 7 + 8)
