Method: use SOHO/EIT as base to line everything up on, i.e., get shifts relative to these instruments. By comparing lines formed at the same or similar temperatures, we get relative shifts which can be followed back to the reference instruments (marked Result below).
Note, shifts are already included in images linked below. Also, first instrument in title is the base, second (and third) overlaid in contours. Shifts are in arcseconds. You can check out (or run) the program that does the shifts. You will also need the datafile of idl maps of each instrument's observations.
These overlays are primarily for lining up purposes.
Further overlays are also available.

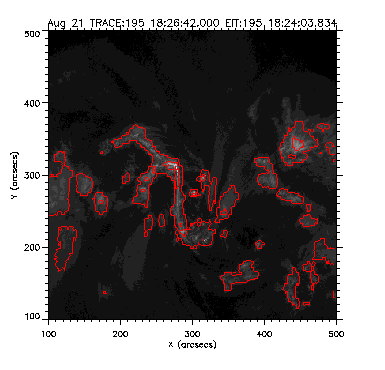

1) line up TRACE 195 Angstroms with EIT 195 Angstroms

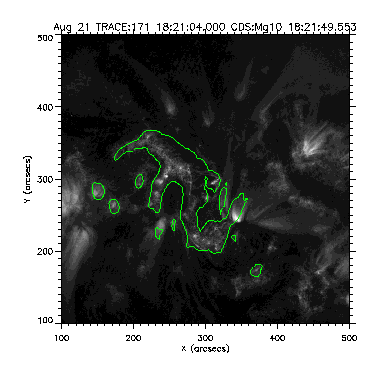

Same line line-up and Result: TRACE needs to be shifted [1,-4] w.r.t. EIT2) line up TRACE 171 Angstroms with CDS Mg10

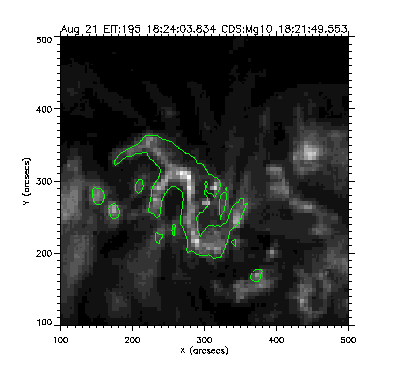

Similar temperature line-up: CDS needs to be shifted [-3,14] w.r.t. TRACE3) line up EIT 195 Angstroms with CDS Mg 10
Result: From 1) and 2), CDS needs to be shifted a total of [-2,10] w.r.t. EIT4) line up SXT Al Mg and CDS Fe 19

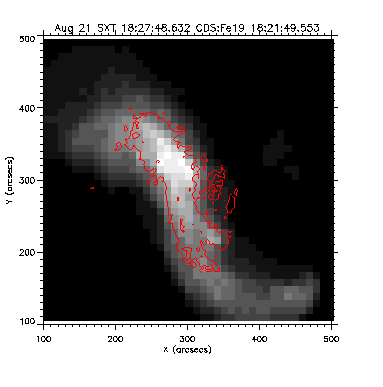

Similar temperature line-up: CDS needed to be shifted [15,25] w.r.t. SXT.5) line up TRACE 284 Angstroms with both SXT Al Mg and CDS Fe19 and Mg10

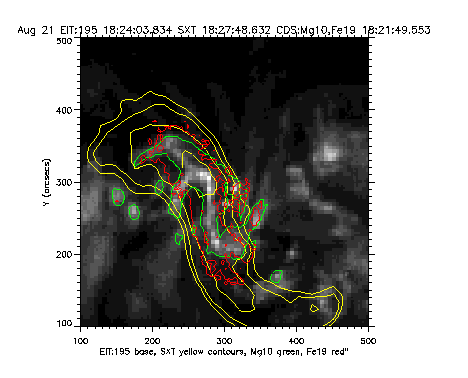

Test: from 2) and 4), SXT is shifted a total of [-18,-11] w.r.t. TRACE. Also we show here CDS Fe19 and Mg10, both shifted [-3,14] w.r.t. TRACE, in order to help demonstrate the different parts of the sigmoid that SXT and TRACE 284 are picking up (also see 6 which overlays the same contours on EIT 195).6) line up EIT 195 Angstroms with both SXT Al Mg and CDS Fe19 and Mg10

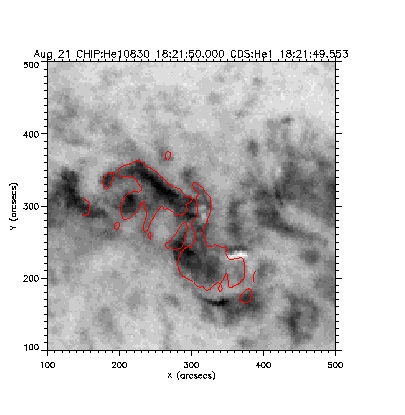

Result: From 4) and 3) SXT needs to be shifted [-17,-15] w.r.t. EIT7) line up CHIP He 10830 with CDS He1

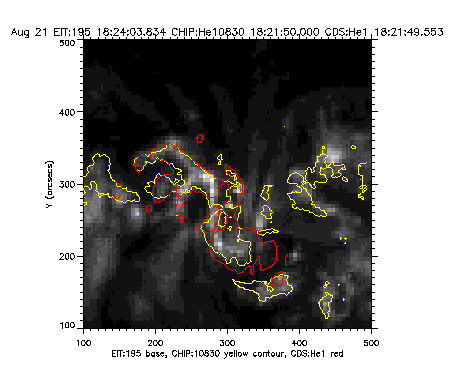

Similar temperature line-up: CHIP needed to be shifted [-4,-17] w.r.t. CDS8) line up EIT 195 Angstroms with CHIP He 10830 and CDS He1

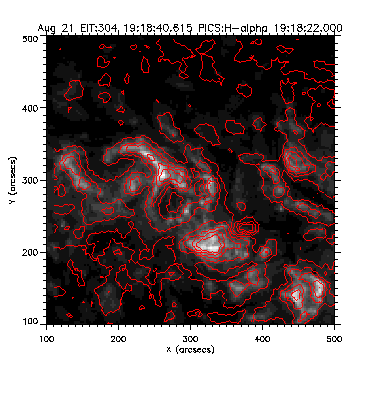

Result from 7) and 3): CHIP needs to be shifted [-6,-7] w.r.t. EIT9) line up EIT 304 and PICS H-alpha

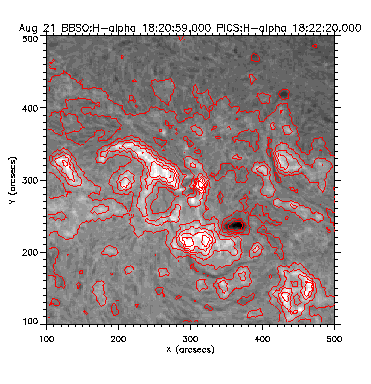

Similar temperature line-up and Result: PICS needed to be shifted [9,-3] w.r.t. EIT10) line up BBSO H-alpha with PICS H-alpha
Same line line-up: BBSO needed to be shifted [-2,-2] w.r.t. PICS, so Result from 10) and 9): BBSO needs to be shifted [7,-5] w.r.t. EIT11) line up BBSO H-alpha and MDI

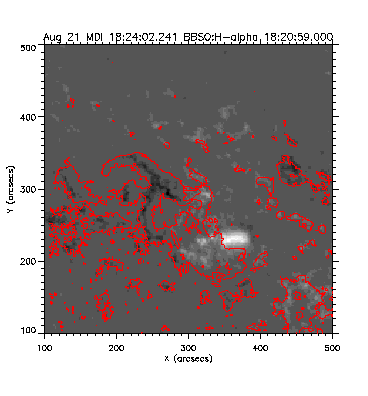

Assuming MDI and EIT are co-aligned, BBSO is also shifted [7,-5] w.r.t. MDI12) Also show MDI overlaid by BBSO H-alpha

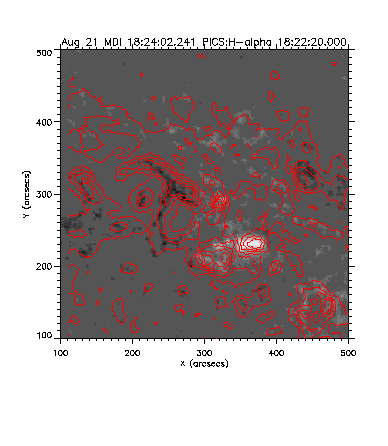

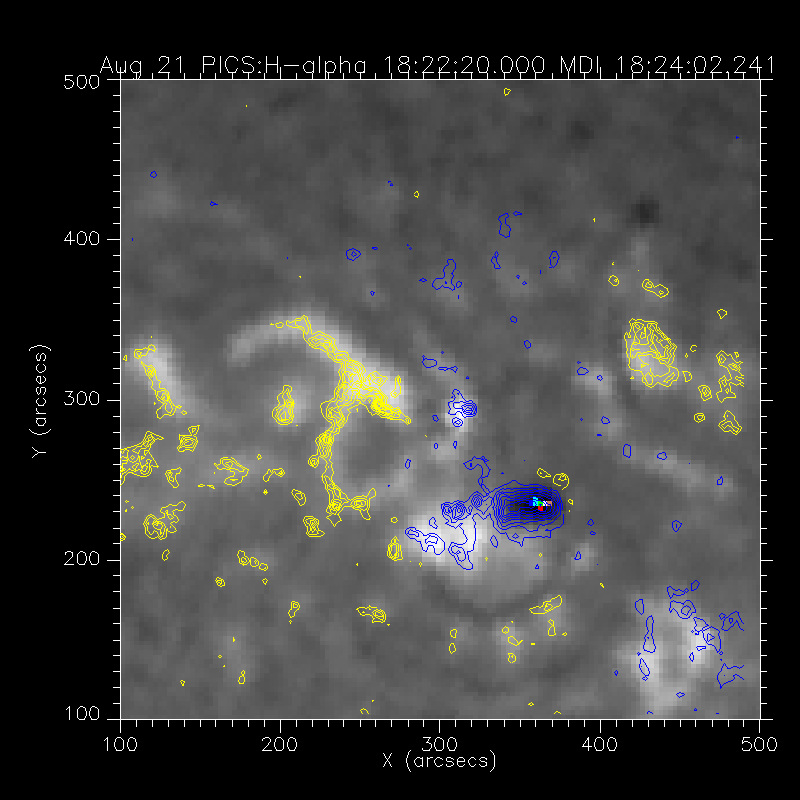

13) line up PICS H-alpha and MDI
Assuming MDI and EIT are co-aligned, PICS is also shifted [9,-3] w.r.t. MDI12) Also show MDI overlaid by PICS H-alpha

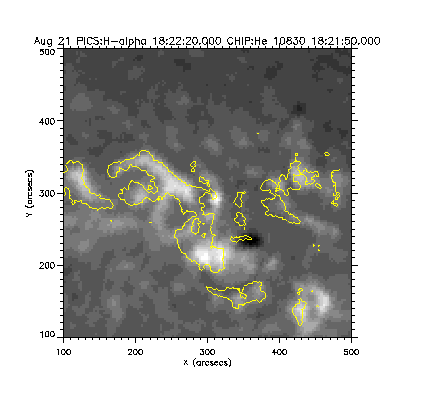

13) Finally compare PICS H-alpha and CHIP He 10830
CHIP should be shifted [-15,-4] w.r.t. PICS
