Thermospheric General Circulation Models (TGCM)

TGCMPROC-like master scripts

zp/Height vs. Latitude

master script: zplat_master.ncl

This script contours selected fields over a polar stereographic map projection at selected Zp pressure levels. User settable options include color, curly-vector overlay, and postscript file output.

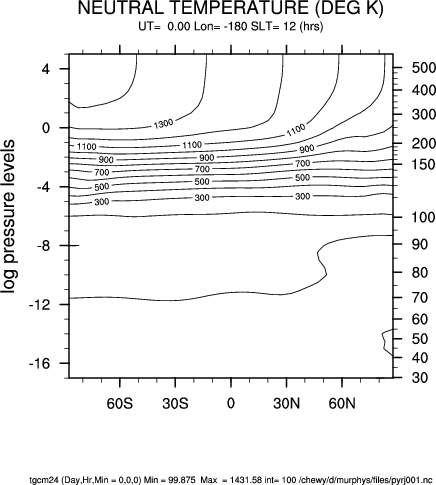

1) user choice: black and white + longitude (geographic coordinates)


     comment out colormap
     ; colormap = "BlWhRe"
     type       = "lon"
     lon2plt    = -180

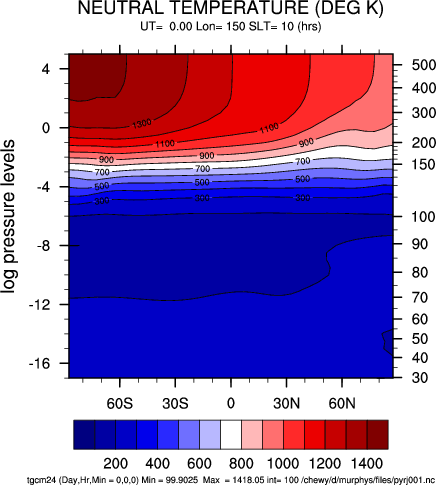

2) user choice: color + solar local time (geographic coordinates)


     colormap  = "BlWhRe"
     type      = "slt"
     slt       =  10

3) user choice: color + slt + limit axis + manually select contour intervals (geographic coordinates)


     colormap = "BlWhRe"
     type     = "slt"
     slt      =  12
     ymin     = -13
     ymax     =  -5
     manlev   =  True
     minlev   = -40
     maxlev   =  40
     int      =  40

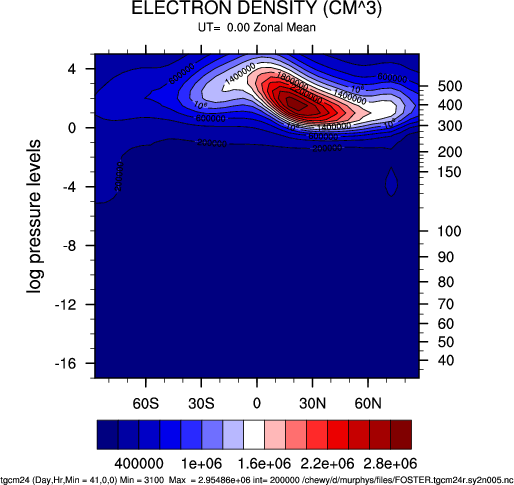

4) user choice: color + zonal mean (magnetic coordinates)


    colormap = "BlWhRe"
    type     = "zmean"

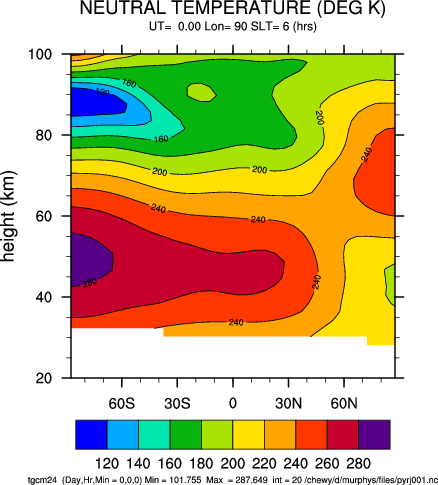

5) user choice: color + height interpolation


    colormap = "BlAqGrYeOrRevi200"
    height   = True
    top      = 100
    bott     = 20
    dz       = 40

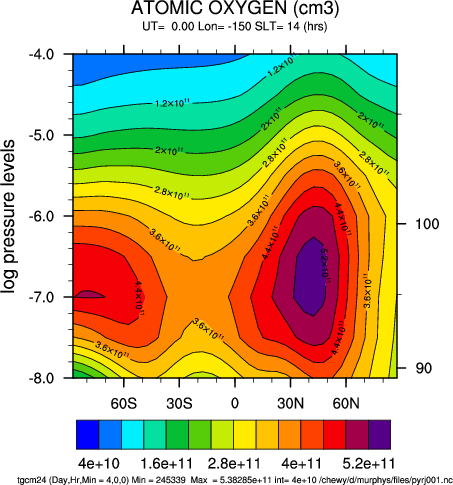

6) user choice: color + denisty unit converstion + limit y-axis


    colormap      = "BlAqGrYeOrRevi200"
    ymin          = -8
    ymax          = -4
    density_units = "CM3"
