Thermospheric General Circulation Models (TGCM)

TGCMPROC-like master scripts

Profiles (Zp/Height vs field)



master script: profile_master.ncl

Creates profile plots. User settable options include limiting the axis, interpolation to height etc.

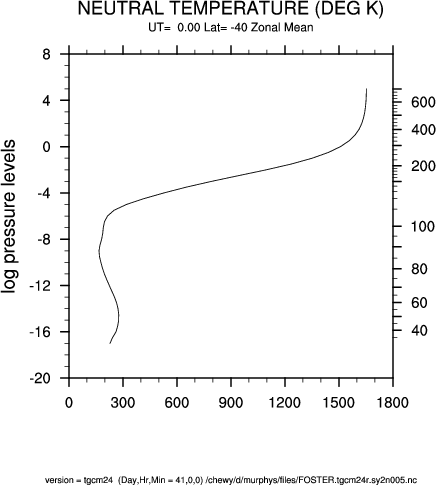

1) user choice: zonal mean + latitude


     lat2plt   = -40
     type      = "zmean"

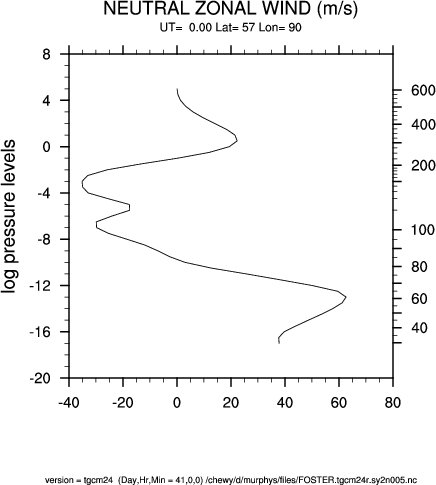

2) user choice: longitude + latitude


     type     = "lon"
     lon2plt  = 90
     lat2plt  = 57

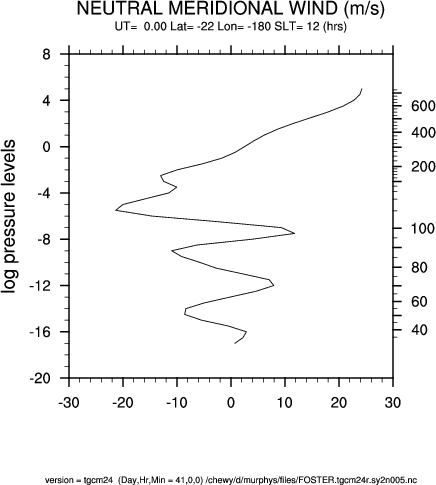

3) user choice: slt + latitude


     type     = "slt"
     slt      =  12
     lat2plt  = -22

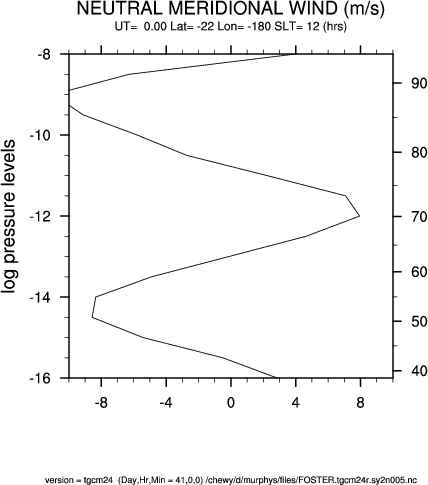

4) user choice: limit axis


     ymin     = -16
     ymax     = -8
     xmin     = -10
     xmax     =  10

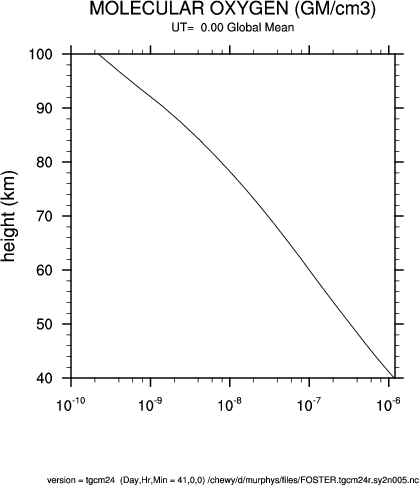

5) user choice: interp to height, convert to density, x-axis log



     type          = "slt"
     slt           = 12
     lat2plt       = -22
     height        = True
     top           = 500
     bott          = 40
     dz            = 20
     xlog          = True
     density_units = "GM/CM3"
