Thermospheric General Circulation Models (TGCM)

TGCMPROC-like master scripts

Latitude vs. Time



master script: latut_master.ncl

This script contours selected fields over a polar stereographic map projection at selected Zp pressure levels. User settable options include color, curly-vector overlay, and postscript file output.

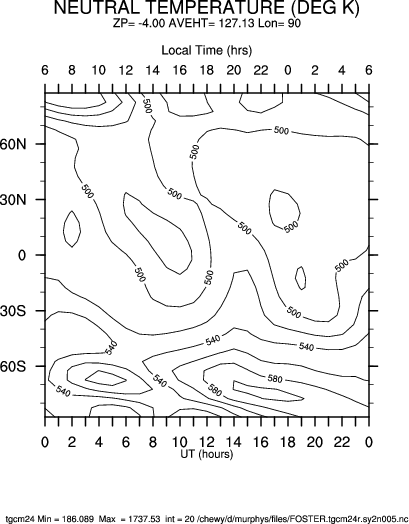

1) user choice: black and white + zplev + lon ut(hours)


     comment out colormap
     ; colormap = "BlWhRe"
     type       = "lon"
     lon2plt    =  90
     zplev      = -4

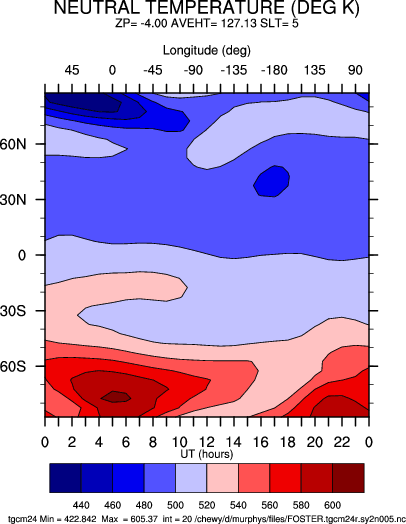

2) user choice: color + zplev + slt ut(hours)


     colormap = "BlWhRe"
     type     = "slt"
     slt      =  5
     zplev    = -4

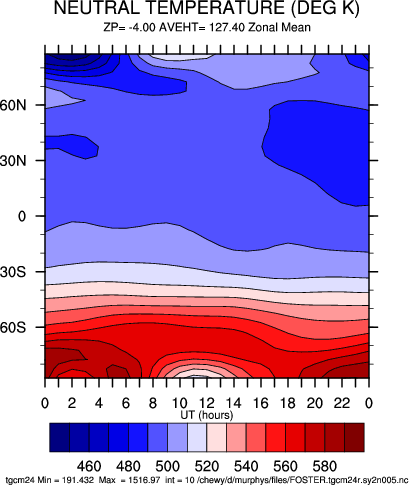

3) user choice: color + zplev + zonal mean ut(days)


     colormap = "BlWhRe"
     type     = "zmean"
     zplev    = -10.

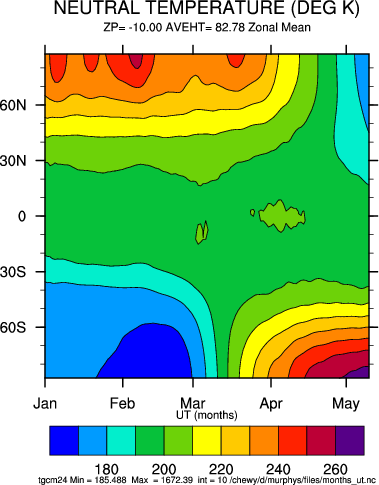

4) user choice: color + zplev + lon ut(months)


     colormap = "BlAqGrYeOrRevi200"
     zplev    = -10.
     type     = "lon"
     lon2plt  = 90.

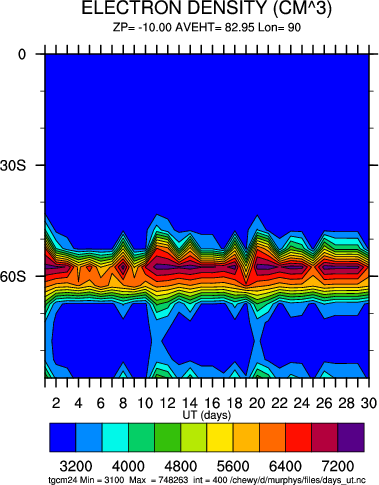

5) user choice: color + lat/zonal mean + limit axis ut(days)


     colormap = "BlAqGrYeOrRevi200"
     type     = "lon"
     lon2plt  =  90.
     zplev    = -10.
     ymin     =   0.

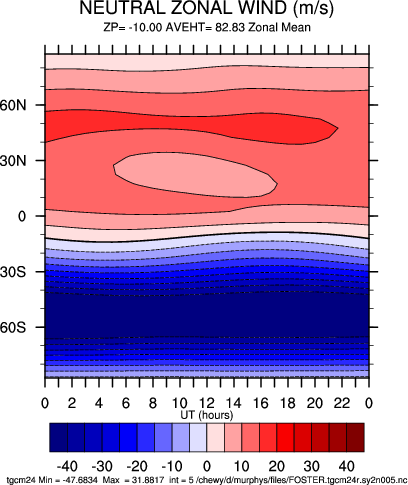

6) user choice: color + lat/zonal mean + manually select contour intervals ut(days)


     colormap = "BlWhRe"
     type     = "zmean"
     zplev    = -10.
     manlev   =  True
     minlev   = -4000
     maxlev   =  4000
     int      =  500

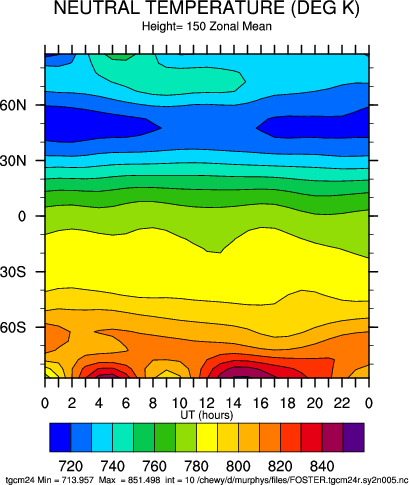

7) user choice: color + lat/zonal mean + interpolate to height


     colormap = "BlAqGrYeOrRevi200"
     type     = "zmean"
     height   = 150

8) user choice: color + lat/slt + density unit conversion


     colormap      = "BlAqGrYeOrRevi200"
     type          = "slt"
     slt           = 5
     density_units = "GM/CM3"
